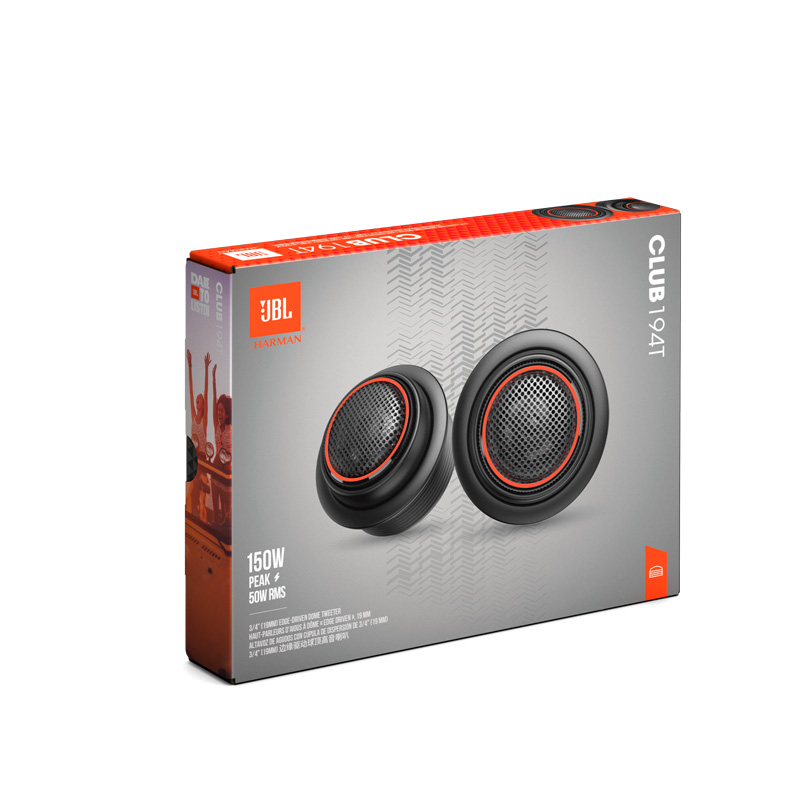

JBL Club Gen3 194T 3/4'' (19mm) Tweeter Ensemble

JBL Club Gen3 194T 3/4'' (19mm) Tweeter Set

3/4” (19mm) Edge-Driven Dome Tweeter

Pro Car Audio by JBL Club coaxial and component speakers bring JBL pro sound to more vehicles. Their compact design means they’ll fit into more vehicles than many of our competitors, and their high sensitivity delivers outstanding performance even with modestly-powered factory systems. Rugged polypropylene cones with the Plus One™ design deliver hard-hitting bass and long performance life. Edge-driven silk dome tweeters deliver broader and smoother high frequency response, never-harsh regardless of output level. Starfish™ Tweeter Mounting Adapter and I-Mount Tweeter Mounting Kit in component speaker system for easy installation. Available in a range of standard sizes - 3'', 4'', 5-1/4'', 6-1/2'', 6''x 8'', 4''x6'', 6''x9'', and 3/4'' — they’re the perfect upgrade from factory speakers.

Starfish™ Tweeter Mounting Adapter
The Club 64C, Club 64CTP component Speaker system come with the Starfish™ tweeter mounting adapter. The Starfish tweeter mounting adapter allows for easy installation of the tweeter behind factory grilles and in locations such an A-Pillar. It also provides six break-off mounting tabs to accommodate many mounting configurations. The tweeter can be surface- or flush-mounted. The tweeter can be easily serviced, and doesn’t require removing the whole assembly.

I-Mount Tweeter Mounting Kit
The I-Mount™ (patent no. 5,859,917) tweeter-mounting system allows easy and versatile installation of tweeters in each of the component systems. It includes a flush cup and surface-mount mounting hardware. With a 1-3/4” cutout and a 1”” mounting depth, installation becomes a snap. This allows the tweeter to be flush-mounted and can be angled up to ±40 degrees. Locknuts are included to keep everything in place, and the tweeter can be replaced without removing the whole assembly.

Club 194T (3/4” (19mm) Edge-Driven Dome Tweeter)
Power Handling: 50W RMS, 150W peak
Sensitivity (@ 2.83V): 92dB
Frequency Response: 3kHz – 20kHz
Nominal Impedance: 3.0 ohms
